What are rubber gaskets & O-Rings?

Precision sealing, any shape or size

A rubber gasket is a shaped piece of elastomer placed between two mating surfaces to create a leak-tight seal against liquid, gas, dust or vibration. An O-Ring is the most common gasket geometry — a closed ring with a circular cross-section, sized by inner diameter and cord thickness — but URM produces gaskets in flat, cellular, moulded and fully custom profiles as well.

The right gasket depends on more than the hole it fills. Compound, hardness (Shore A), thickness, compression set and chemical compatibility all determine whether a seal lasts years or fails within weeks. Material selection is the single biggest factor in gasket performance — our engineers confirm compound and hardness against your operating temperature, media and pressure before any tooling or cutting begins.

At URM, we produce both standard gasket shapes (flat washers, rings, custom-cut sheet gaskets) and bespoke gaskets and O-Rings developed from your drawing, sample or CAD data — in solid or cellular (sponge) rubber, self-adhesive on request.

Specification & Material Selection

Send your drawing, sample, or the ID × OD × cross-section and operating conditions. We confirm compound, hardness and tolerance before quoting.

Manufacturing Method Selection

We select compression moulding, injection moulding, or die/waterjet cutting from sheet based on quantity, dimension and tolerance requirement.

Tooling (Where Required)

Moulded gaskets and O-Rings requiring a die or mould are tooled to your exact specification. Tooling is held on file for repeat orders.

Cutting, Moulding & Vulcanisation

Gaskets are cut, moulded or vulcanised to achieve the required mechanical properties, hardness and finish.

Quality Control & Delivery

Dimensional checks, hardness testing (Shore A) and visual inspection before dispatch, packed to your specification.

Our range

Rubber Gasket & O-Ring Types

From a single O-Ring to a fully custom moulded gasket, URM produces rubber sealing elements in virtually any geometry. Below is an overview of our standard range — all available in custom dimensions and compounds. Looking for a seal bonded to metal? See our rubber-metal parts.

O-Rings

Circular-cross-section sealing rings for static and dynamic applications, produced by compression or injection moulding. Standard AS568/metric sizes or fully custom inner diameter and cord thickness. Available in EPDM, NBR, FKM/Viton, silicone and FFKM-equivalent compounds.

Flat & Sheet-Cut Gaskets

Gaskets cut from solid or cellular rubber sheet by die-cutting or waterjet cutting. Ideal for flange sealing, access panels, and custom outlines with no tooling required for small runs.

Cellular & Sponge Rubber Gaskets

Closed-cell and open-cell sponge rubber gaskets for low-closure-force sealing, gap-filling and vibration/acoustic damping. EPDM and neoprene cellular grades widely used in enclosures and panel seals.

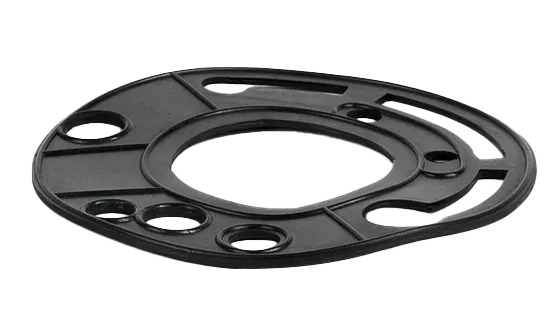

Moulded Gaskets

Compression- or injection-moulded gaskets to a fully custom 2D or 3D geometry, produced from a dedicated steel mould held on file for repeat orders.

Silicone Gaskets & O-Rings

Solid and cellular silicone gaskets for high-temperature, food-contact and medical applications. FDA-compliant grades available, with excellent compression set resistance across a wide temperature range.

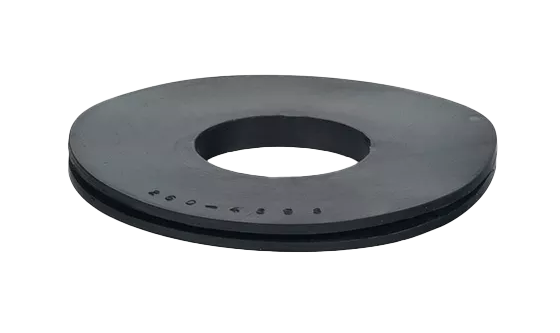

Rubber Washers

Flat sealing washers in solid or cellular rubber, standard or custom bore and outer diameter, for fastener and fitting seals.

Self-Adhesive Gaskets

Gaskets and cellular rubber strip supplied with self-adhesive backing film for fast, accurate assembly and loss prevention during transport. Function is unaffected once installed.

Large-Diameter & Custom O-Rings

Large O-Rings produced by butt-vulcanisation of extruded cord where standard moulding is impractical — no tooling cost, any inner diameter, cord lengths up to several metres.

Food Grade & FDA-Compliant Gaskets

Silicone, EPDM and NBR gaskets and O-Rings manufactured to FDA-compliant formulations for food processing and pharmaceutical equipment. Certification documentation available on request.

Bespoke Rubber Gaskets

Need a gasket that doesn't exist off the shelf? Send a drawing, a sample, or the dimensions and operating conditions — our engineering team will confirm compound, tolerance and manufacturing method and produce the part.

Compounds

Available Gasket & O-Ring Materials

Material selection is critical to gasket performance. Our engineering team specifies the correct compound based on your media, temperature and pressure — from outdoor weathering seals to chemical-resistant process gaskets. All materials are sourced and processed under our ISO 9001 quality management system, with full material traceability. Food grade and FDA-compliant compounds are available.

CompoundTemperature RangeKey PropertiesTypical Applications
EPDM−40°C to +130°COutstanding UV, ozone, weather and steam resistance. Low compression set. Good electrical insulation.Outdoor gaskets, potable water seals, glazing washers, HVAC and enclosure seals
Silicone (VMQ)−60°C to +200°CExtreme temperature stability, FDA/food grade compliant grades, excellent compression set resistance.Food grade gaskets, high-temperature O-Rings, medical seals, appliance gaskets
NBR (Nitrile)−30°C to +100°CSuperior oil and fuel resistance. Good mechanical strength and abrasion resistance.Hydraulic and pneumatic O-Rings, oil seals, fuel system gaskets, industrial washers
Neoprene (CR)−30°C to +100°CBalanced weather, flame and oil resistance. Good adhesion for bonded or self-adhesive gaskets.Marine gaskets, flame-retardant enclosure seals, cellular panel gaskets
FKM (Viton®)−20°C to +200°CExceptional chemical and fuel resistance. Low gas permeability. Available at 60–90 Shore A.Chemical processing O-Rings, aggressive fluid sealing, high-temperature gaskets
SBR−40°C to +100°CGood abrasion resistance. Cost-effective general-purpose compound.General industrial washers, low-cost sealing applications

* Food grade and FDA-compliant gaskets are available primarily in silicone, with certain EPDM and NBR formulations also suitable depending on application. Please specify food, pharma or drinking-water compliance when requesting a quote.

Manufacturing Technology

Gasket Manufacturing Methods

Quantity, dimension, tolerance and material together determine the right manufacturing process. URM selects the optimal method for your gasket or O-Ring rather than defaulting to one process for every job.

Compression Moulding

An extruded blank is pressed under heat into the finished O-Ring or gasket shape. Suited to smaller quantities and larger dimensions, with lower tooling cost than injection moulding.

Injection Moulding

Compound is injected into a closed mould for automated, high-volume production of standard-size O-Rings and gaskets to a consistent, high quality standard.

Die-Cutting & Waterjet Cutting

Flat and cellular gaskets are cut from sheet stock. Die-cutting suits medium-to-large runs; waterjet or plotter cutting suits prototypes, tight tolerances, and runs with no tooling budget.

Material Snapshot

Resistance & Compliance at a Glance

A quick reference for the three most-requested gasket compounds. Full technical data sheets and chemical compatibility guidance are available on request when you specify your quote.

EPDM

Shore A 25–90

  • Temperature range: −40°C to +130°C
  • Extended (peroxide-cured): up to +150°C
  • Drinking water / steam: on request
  • Resistant to: ozone, weather, sea water
  • Not suited to: fuels & oils

Silicone (VMQ)

Shore A 20–80

  • Temperature range: −60°C to +200°C
  • Food / FDA compliant: available
  • Compression set: excellent
  • Resistant to: food contact, high temperatures, UV / ozone
  • Limited: chemical resistance

FKM (Viton®)

Shore A 60–90

  • Temperature range: −20°C to +200°C
  • Gas permeability: low
  • Fuel / chemical resistance: excellent
  • Resistant to: chemicals, fuels & oils, high temperatures
  • Limited: steam
Why choose URM?

The URM Advantage

Engineering-Led Material Selection

We confirm compound, hardness and tolerance against your actual operating conditions before quoting — not the shortest lead-time compound, the right one.

ISO 9001 Certified Gasket Manufacturer

URM is an ISO 9001 and ISO 14001 certified rubber gasket and O-Ring supplier. Our quality management system ensures consistent dimensional control, material traceability and batch-to-batch repeatability.

Material Breadth

From commodity SBR to FDA silicone and chemical-resistant FKM, we hold a wide range of compounds in-house — one supplier for every gasket and O-Ring requirement.

Flexible Volumes

Small prototype and sample batches through to high-volume continuous supply. No minimum order requirement for repeat parts with existing tooling.

Custom Tooling Ownership

Your mould or die is held in our tooling library and can be used indefinitely for repeat orders, with dimensional records maintained for consistency across years of production.

Belgian Since 1935, Global Reach

A Belgian company since 1935, with production in our own plant in Hungary. Fast delivery across the EU and reliable shipping worldwide.

Industries we serve

Rubber gaskets & O-rings

Automotive & EV - URM

Automotive & EV

Precision rubber parts for door gripping profiles, boot seals, coolant and hydrogen hoses, vibration dampers, and thermal and acoustic insulation in passenger vehicles and electric buses.

Learn more
Industrial & Manufacturing - URM

Industrial & Manufacturing

Durable seals, profiles, machine covers, and protective components for production equipment, conveyors, hydraulic systems, and general industrial machinery.

Learn more
Marine industry - URM

Marine industry

Saltwater-resistant door seals, hatch gaskets, deck profiles, and fluid-handling components engineered for UV, corrosion, and harsh offshore environments.

Learn more
Food & Pharmaceutical - URM

Food & Pharmaceutical

FDA-compliant silicone profiles, gaskets, and hoses for hygienic sealing in food processing lines and pharmaceutical manufacturing environments — certified, traceable, and specified for direct food contact.

Learn more
Construction - URM

Construction

EPDM glazing gaskets, curtain wall seals, expansion joint profiles, and door and window sealing for residential and commercial construction — engineered for 50-year service life.

Learn more
Chemical industry - URM

Chemical industry

FKM, NBR, and specialist elastomer components for process pipework, tank sealing, pump protection, and equipment in aggressive chemical environments — compound selection is everything.

Learn more
URM

FAQ

1 What is the difference between a gasket and an O-Ring?

An O-Ring is a specific gasket geometry: a closed ring with a circular cross-section, sized by inner diameter and cord thickness, used for both static and dynamic sealing. "Gasket" is the broader term covering any shaped sealing element — flat sheet-cut gaskets, cellular gaskets, moulded gaskets and washers all fall under it. URM produces both.

2 Which rubber compound is best for O-Rings?

It depends on the media and temperature. NBR is the default for oils, fuels and hydraulic fluids. EPDM is preferred for water, steam and outdoor/weathering exposure. FKM (Viton®) is used for aggressive chemicals and high temperatures. Silicone suits food-contact, medical and high-temperature-stability applications. Our engineers confirm the right compound against your specific application.

3 Do you offer food grade or FDA-compliant rubber gaskets?

Yes. We produce food grade and FDA-compliant gaskets and O-Rings, primarily in silicone, with certain EPDM and NBR formulations also available depending on the application. Please specify food, pharma or drinking-water compliance when requesting a quote so we can confirm the correct compound and any required documentation.

4 Can you produce custom O-Ring or gasket sizes?

Yes. While we stock common standard sizes, URM regularly produces custom O-Rings and gaskets to a specific inner diameter, cross-section or outline — from your drawing, DXF file, CAD data, or a physical sample. There is no requirement to fit a standard AS568 or metric size.

5 What tolerances can you achieve on rubber gaskets?

Standard tolerances follow DIN ISO 3302. Waterjet-cut and moulded parts can achieve tighter tolerances depending on compound, thickness and geometry. We confirm applicable tolerances at the quotation stage based on your specific part.

6 What is the minimum order quantity for gaskets or O-Rings?

There is no fixed minimum, particularly for parts with existing tooling or those cut from sheet stock. For new mould tooling, a small initial order is typically required to justify tooling cost. Contact us with your requirements for a realistic assessment.

7 Can gaskets be supplied with a self-adhesive backing?

Yes. Gaskets and cellular rubber strip can be supplied with self-adhesive film for faster, more accurate installation and to prevent loss of pre-assembled components in transit. The adhesive film has no effect on the gasket's sealing function once installed correctly.

8 What is the difference between compression moulding and injection moulding for O-Rings?

Compression moulding presses an extruded blank into shape and suits smaller quantities and larger dimensions at lower tooling cost. Injection moulding automatically injects compound into a closed mould and suits high-volume production of standard sizes to a consistent quality standard, but at higher tooling cost.

9 How are large O-Rings manufactured?

Particularly large O-Rings are produced by butt-vulcanisation of extruded round cord rather than moulding. The cord ends are joined and vulcanised under heat and pressure. This method requires no tooling, allows short delivery times and any inner diameter, though the joint is a comparatively minor weak point versus a continuous moulded ring.

10 What is a cellular or sponge rubber gasket?

Cellular (sponge) rubber gaskets have a cellular internal structure rather than a dense, solid one, giving them lower closure force and higher compressibility than solid rubber. They're used where a low mounting force is needed to achieve a seal, such as enclosure panels, van body seals, or gap-filling applications, and are available as closed-cell or open-cell structures.

11 Do you supply both solid and cellular gaskets in the same materials?

Yes. Most of our compounds — EPDM, neoprene, silicone — are available in both solid (dense) and cellular (sponge) form. The choice depends on the required closure force, compression set behaviour and sealing gap, which our engineers can advise on for your application.

12 How quickly can you deliver rubber gaskets and O-Rings?

Lead times depend on whether tooling exists, the manufacturing method, and order volume. Sheet-cut gaskets with no tooling requirement are typically fastest. Moulded parts with existing tooling follow, with new mould tooling adding lead time for tool production. We can discuss expedited options for urgent requirements.

13 What information do you need to quote a gasket or O-Ring?

Ideally: inner diameter, outer diameter (or cross-section thickness), material preference or operating temperature/media, hardness requirement (Shore A) if known, and annual or batch quantity. A drawing or physical sample works just as well if exact dimensions aren't yet defined — we'll confirm the rest.

14 Can rubber gaskets replace a specific branded or catalogue part?

In many cases, yes. If you have a part number, catalogue reference, or a worn original to hand, we can typically manufacture a custom-made equivalent in the compound and dimensions you need — useful for spares, replacements, or where a branded part is no longer available or economical to source.
