What are rubber hoses & elbows?

Flexible connections, engineered to perform

Rubber hoses and elbows are flexible tubes that carry air, coolant, fuel or process fluids between two fixed points. They absorb vibration, take up misalignment and withstand thermal cycling where rigid pipe cannot. An elbow is a hose pre-formed to a fixed angle (typically 45° or 90°), so no separate fitting is needed at a change of direction.

URM makes standard hose constructions and fully custom hoses to your drawing, sample or specification: straight, formed or convoluted, with or without reinforcement, with metal fittings or crimped ends where required. We produce rubber and silicone hoses only, no plastic or PVC tubing.

As an ISO 9001 certified rubber hose manufacturer, we select the compound, reinforcement and construction for your operating conditions: temperature, cyclic pressure, chemicals, vibration, and food or fire-safety compliance where relevant.

  • Custom geometries: exact angles, complex bends and convoluted sections.
  • Prototype to series: from prototypes to OEM series production.
  • In-house lifecycle testing: cyclic pressure and extreme-temperature test rigs.
  • Worldwide shipping: fast delivery across the EU and beyond.

Design & engineering

Send us your drawing, sketch or sample. Our engineers confirm bore diameter, bend radius and pressure rating.

Compound & reinforcement

We select the compound and reinforcement (knit polyester, nylon, aramid or steel wire) for your temperature, pressure and chemical exposure.

Mandrel & tooling

A precision mandrel is made for the exact hose geometry, including bends and convoluted sections. Tooling is kept on file for repeat orders.

Construction & curing

Inner tube, reinforcement and outer cover are built up on the mandrel and cured to the required mechanical and temperature properties.

Testing, QC & delivery

Cyclic pressure and temperature testing, dimensional checks and visual inspection before dispatch. Metal fittings or crimped ends added where specified.

Our range

Rubber & Silicone Hose Types

From coolant transfer to fire-safety-critical rail systems, URM produces rubber and silicone hoses in six families, all available in custom dimensions, angles and reinforcement.

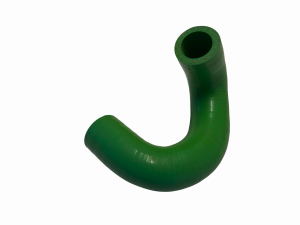

Silicone Coolant Hoses

Coolant, air and water transfer between rigid pipes. Resistant to weak acids, alkalis, salts and low-concentration glycols, with excellent ozone and UV resistance. View silicone coolant hoses →

Charge Air & Turbo Hoses

Silicone hoses for engine-mounted charge air cooler systems. Straight, formed or convoluted, with optional metal fittings and crimped ends for high pressure and vibration. View charge air & turbo hoses →

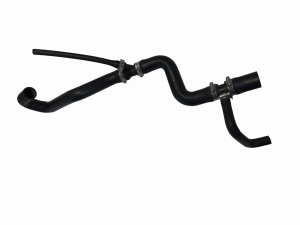

EPDM Rubber Hoses

EPDM hoses with fabric reinforcement options, including corrugated versions with a tighter bend radius for complex connections, vacuum or positive pressure. View EPDM rubber hoses →

Flame Retardant Hoses

Low-smoke compounds for rail and transport fire-safety systems. EN 45545-2 certified, HL1/HL2 classification depending on application. View flame retardant hoses →

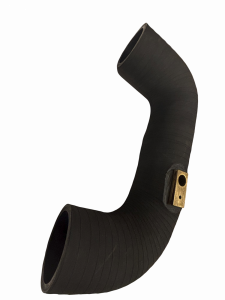

Organic Rubber Hoses

SBR, PVC/NBR, FKM, CR (Neoprene), AEM (Vamac) and NBR for air, water and fuel transfer, reinforced or non-reinforced, with custom tube and cover combinations. View organic rubber hoses →

Food Grade Hoses

Platinum-cured, FDA-approved silicone for hygienic fluid transfer. Knit polyester plies with optional wire, low taste and odour transfer, reduced bacterial growth. View food grade hoses →

Compounds & operating ranges

Hose Family Specifications

Our engineering team specifies the hose family for your temperature, pressure and chemical exposure. All hoses are manufactured under our ISO 9001 quality management system. Food grade and FDA-compliant compounds are available.

Hose familyTemperature rangeKey propertiesTypical applications
Silicone coolant−51 °C to +177 °C (high-temperature grades to +204 °C)Resists weak acids, alkalis, salts and low-concentration glycols. Excellent ozone and UV resistance.Coolant, air and water transfer, EV cooling systems
Charge air / turbo−56 °C to +220 °CCyclic pressure to 10 bar, SAE J20 Class A. Fluorosilicone/FKM linings for oil and acid fuel resistance.Turbocharger and charge air cooler systems
EPDM−30 °C to +90 °CSulphur- or peroxide-cured. Smooth bore, reinforced or non-reinforced.Air intake hoses, industrial ducting
Flame retardant−50 °C to +250 °CEN 45545-2 certified, HL1/HL2, low smoke emission. Silicone or EPDM base.Rail HVAC, brake cooling, roof drainage, engine systems
Organic rubber−30 °C to +120 °CSBR, PVC/NBR, FKM, CR, AEM (Vamac), NBR. Custom tube and cover combinations.Air, water and fuel transfer
Food grade silicone−50 °C to +180 °CPlatinum-cured, FDA approved. Low taste and odour transfer, reduced bacterial growth.Food, dairy, beverage and pharmaceutical fluid transfer

Temperature ranges are typical values per hose family. The exact rating depends on compound, reinforcement and construction, and is confirmed with the quotation.

Why choose URM?

The URM Advantage

Engineering-led design

Our engineers match bore diameter, bend radius, pressure rating and chemical compatibility before committing to tooling.

ISO 9001 & 14001 certified

We control quality at every stage, from mixing the compound to final inspection, for consistent dimensions batch after batch.

In-house lifecycle testing

Cyclic pressure and extreme-temperature test rigs validate each hose design under real operating conditions before production.

Material breadth

From EPDM to FDA silicone and specialist FKM, CR and AEM compounds, we work with a wide range of hose compounds.

Your tooling on file

Your custom mandrel is held in our tooling library and can be used for repeat orders, for consistency across production runs.

Belgian since 1935

A Belgian company since 1935, with its own production plant in Hungary. Trusted by OEMs and Tier-1 suppliers, with fast delivery across the EU.

Manufacturing technology

Hose Construction Methods

The construction determines a hose’s pressure rating, flexibility and resistance to mechanical stress. URM selects the build for the compound, geometry and performance you need.

Reinforced

Additional plies of knit polyester, nylon, aramid or embedded steel wire. For industrial processes under high pressure or vacuum, where mechanical stress is a factor.

Non-reinforced

A single-layer construction for standard applications with moderate pressure and vacuum. Similar flexibility to reinforced hoses at a lower cost.

Convoluted & formed

Straight, formed or convoluted (bellows-style) geometries that compensate for misalignment and 3-axis movement, common on charge air and turbo hoses.

Industries we serve

Rubber hoses & elbows

Automotive & EV - URM

Automotive & EV

Precision rubber parts for door gripping profiles, boot seals, coolant and hydrogen hoses, vibration dampers, and thermal and acoustic insulation in passenger vehicles and electric buses.

Learn more
Agriculture - URM

Agriculture

Abrasion and weather-resistant hoses, gaskets, moulded parts, screen balls, and PU components that keep agricultural machinery and off-highway equipment reliable in demanding field conditions.

Learn more
Food & Pharmaceutical - URM

Food & Pharmaceutical

FDA-compliant silicone profiles, gaskets, and hoses for hygienic sealing in food processing lines and pharmaceutical manufacturing environments — certified, traceable, and specified for direct food contact.

Learn more
Chemical industry - URM

Chemical industry

FKM, NBR, and specialist elastomer components for process pipework, tank sealing, pump protection, and equipment in aggressive chemical environments — compound selection is everything.

Learn more
Industrial & Manufacturing - URM

Industrial & Manufacturing

Durable seals, profiles, machine covers, and protective components for production equipment, conveyors, hydraulic systems, and general industrial machinery.

Learn more
Marine industry - URM

Marine industry

Saltwater-resistant door seals, hatch gaskets, deck profiles, and fluid-handling components engineered for UV, corrosion, and harsh offshore environments.

Learn more
Transport & Rail - URM

Transport & Rail

Door seals, window gaskets, vibration isolation mounts, rubber bellows, and fluid hoses for buses, coaches, trains, and rail vehicles — engineered for high-cycle durability and passenger safety.

Learn more
Construction - URM

Construction

EPDM glazing gaskets, curtain wall seals, expansion joint profiles, and door and window sealing for residential and commercial construction — engineered for 50-year service life.

Learn more
URM

FAQ

1 What is the difference between a rubber hose and a rubber elbow?

A hose is a straight flexible tube; an elbow is a hose pre-formed to a fixed bend angle (typically 45° or 90°), so no separate rigid fitting is needed at a change of direction. URM produces both, in straight, formed and convoluted geometries.

2 Does URM produce plastic or PVC hoses as well as rubber hoses?

No. URM makes rubber and silicone hoses only. We do not produce plastic, PVC or thermoplastic tubing.

3 Can you produce custom hoses from my drawing?

Yes. Send us your drawing, DXF file or a physical sample. Our engineers confirm bore diameter, bend radius, pressure rating and chemical compatibility, then produce a mandrel for your exact geometry.

4 Which hose family should I use for high-temperature applications?

Flame retardant hoses offer the widest range (−50 °C to +250 °C) and are certified to EN 45545-2 for rail fire safety. Charge air/turbo silicone hoses are built for high-temperature, high-vibration engine environments. Our engineers recommend the right family for your conditions.

5 Do you offer food-safe or FDA-approved hoses?

Yes. Our food grade hoses are made from platinum-cured, FDA-approved silicone for hygienic fluid transfer, with low taste and odour transfer and reduced bacterial growth. Suitable for food, dairy, beverage and pharmaceutical applications.

6 What is the minimum order quantity for custom hoses?

There is no fixed minimum, particularly for hoses with existing tooling. For new tooling, a small initial order is needed to justify mandrel production. Contact us with your requirements for a realistic assessment.

7 What is the difference between reinforced and non-reinforced hoses?

Reinforced hoses have additional plies of knit polyester, nylon, aramid or embedded steel wire for high pressure or vacuum. Non-reinforced hoses are a cost-effective single-layer construction for standard, moderate-pressure applications.

8 Can hoses be supplied with metal fittings or clamps?

Yes. Hoses can be supplied with clamps, metal fittings or crimped ends on request, for leak-free connections and easy installation, including in confined spaces.

9 What pressure ratings can URM hoses withstand?

This depends on hose family, diameter and reinforcement. Charge air/turbo hoses, for example, are tested to withstand up to 10 bar depending on diameter and wall thickness. We confirm the pressure rating with the quotation.

10 How quickly can you deliver custom hoses?

For hoses with existing mandrels, production lead time is typically 2–4 weeks. New tooling adds a few weeks for mandrel production. We can discuss options for urgent requirements.

11 What is the difference between organic rubber and EPDM hoses?

"Organic rubber" covers a broader group of compounds (SBR, PVC/NBR, FKM, CR/Neoprene, AEM/Vamac and NBR), each chosen for specific chemical or temperature resistance. EPDM is a single compound, chosen for its balance of flexibility, cost and general-purpose resistance.

12 Can hoses be tested for cyclic pressure and vibration?

Yes. URM carries out in-house lifecycle testing, simulating cyclic pressures and extreme temperatures on dedicated test rigs, to validate hose performance under real operating conditions before production.

13 Do you supply single replacement hoses for private vehicles?

No. URM makes hoses for manufacturers, OEMs and industrial buyers, usually in series. For a single replacement hose for a car, a local parts supplier or garage is the better route.
